KEYLESSH3 ARCHITECTURAL SPECIFICATIONS

Architect

  • Shared (temporary) or assigned (permanent) use.
  • Compatible with wood, glass, plastic, phenolic, & metal locker doors.
  • Zero operating expenses- No batteries or wires.
  • LEEDV4 certified- adds 2 LEED credits.
  • 1-year comprehensive warranty.
  • Anti-pick and tamper resistant.
  • Lock is designed with an integrated rotation system. With the presence of a padlock the lock will remain locked, continuously spinning to avoid forced entry and tampering.

  • Ergonomic non-slip grip with a one step twist-and-pull operation
  • The hasp accepts padlock shackles between 4mm to 8mm thick.
  • IP69K- complete dust and water resistance.
  • Strong 100% metal for long-term heavy-use- no plastic components.
  • Accommodates doors 1-19mm thickness.
  • Satin Nickel Finish.
  • Standard cam offset 25mm (additional cam offsets available).
  • Immediate live response during business hours – no run around. (sos@keyless.co or 972.331.2770)

DOWNLOAD ARCHITECTURAL SPECIFICATIONS

download word doc
Download architectural pdf
Download pdf

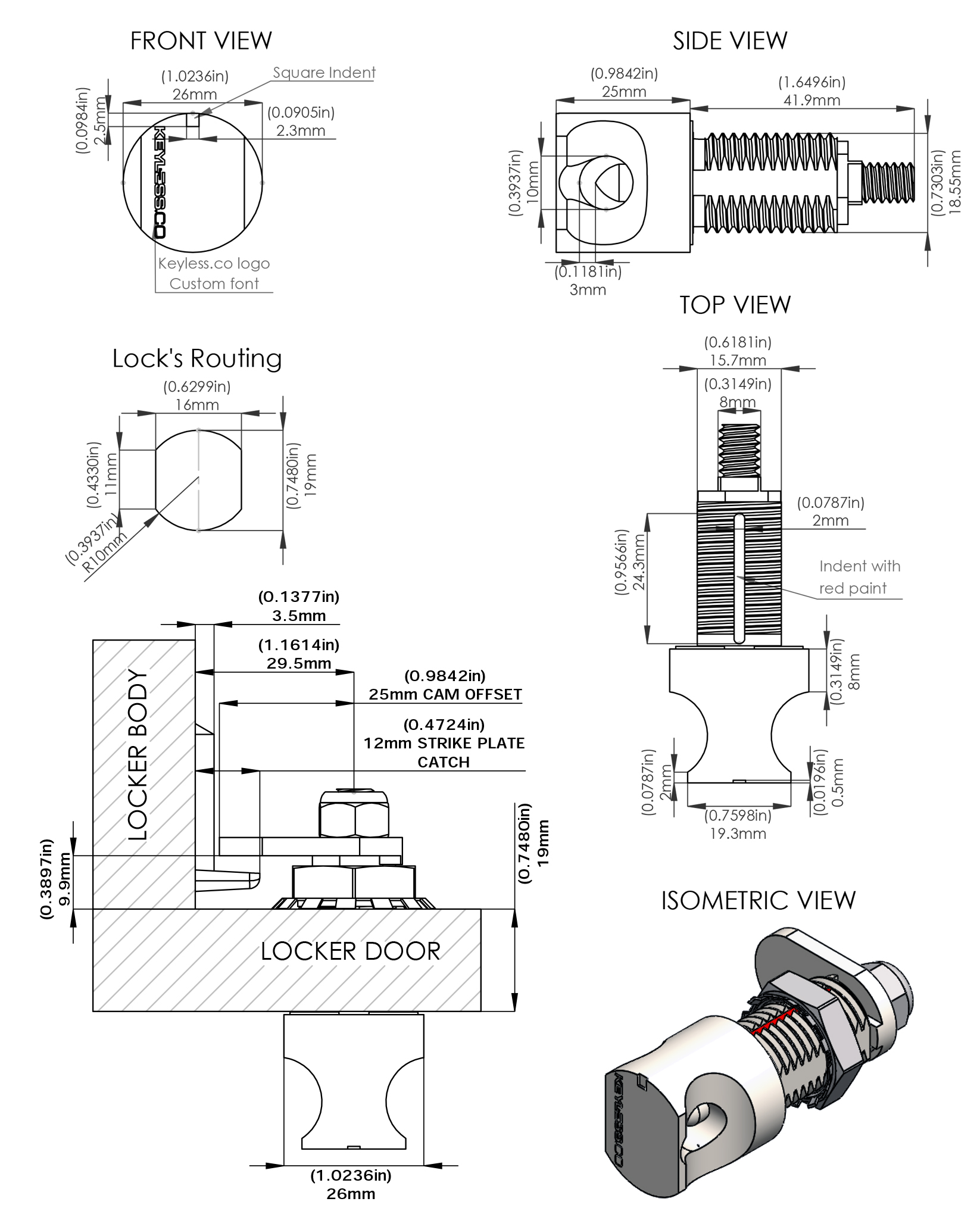

Architect Drawing New9 9 19
