KEYLESS360-ADA FEATURES & SPECIFICATIONS

  • Meets the 2010 and 2012 ADA Standards for Accessible Design
  • The same lock model with ADA lever available
  • Integrated lever serving as a pull
  • Shared (temporary) or assigned (permanent) use
  • 2-digit alphanumeric combination
  • Compatible with wood, glass, plastic, phenolic, & metal locker doors
  • Zero operating expenses- no batteries or wires
  • LEEDV4- adds 2 LEED credits
  • 5-year comprehensive warranty
  • One Master Key has 3 functions; bypasses the code, resets the lock, and retrieves the code- all conveniently from the front
  • Lock features reprogrammable-cylinder. When Master Key is lost or stolen, new Master Key is issued. Simply insert new Master Key and cylinder is reprogrammed- patented solution
  • Anti-pick and tamper resistant
  • Self-correcting, Breakaway Knob protects against forced entry- patented solution
  • IP69K- complete dust and water resistance
  • Strong 100% metal for long-term and heavy-use- no plastic components
  • All additional features of the Keyless360-ADA are exactly the same as the Keyless360 non-ADA

DOWNLOAD ADA SPECIFICATIONS

KEYLESS360 Satin Nickel – ADA
STANDARD FINISH
Model: KEYLESS360-SN-ADA

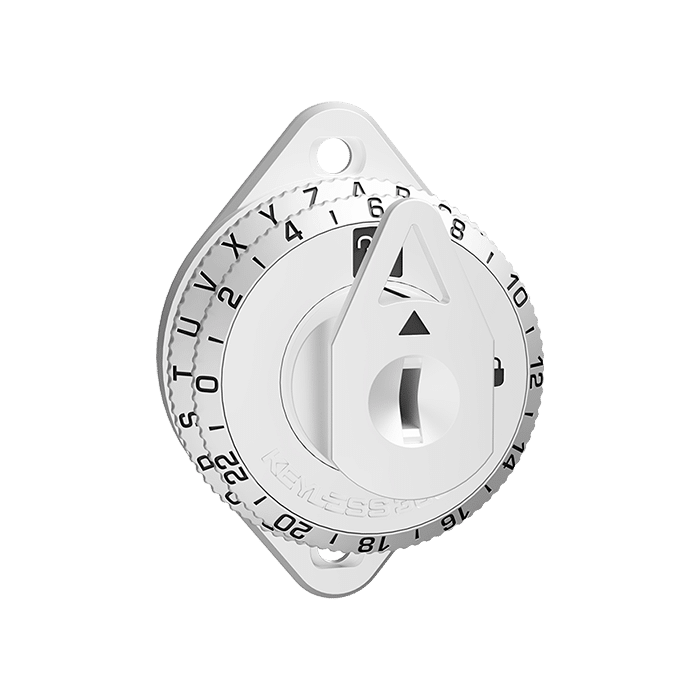

KEYLESS360 Matte White – ADA
PREMIUM FINISH
Model: KEYLESS360-MW-ADA

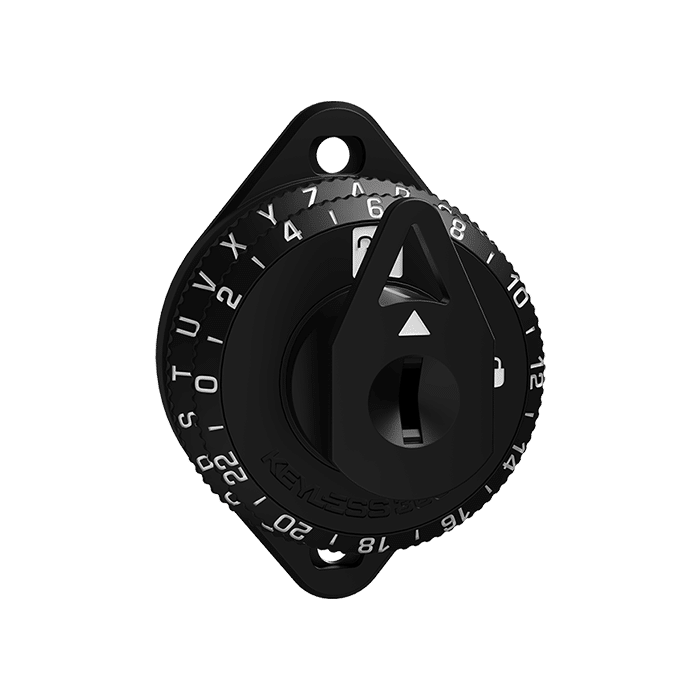

KEYLESS360 Matte Black – ADA
PREMIUM FINISH
Model: KEYLESS360-MB-ADA

2010 & 2012 ADA STANDARDS FOR ACCESSIBLE DESIGN REQUIREMENTS

  • 5% of lockers and their operable parts, the locks, must meet ADA specifications
  • Locks shall be operable with one hand
  • Shall not require tight grasping, pinching, or twisting of the wrist to operate
  • Shall have a force required to activate of 5lbs (22.2N) maximum
  • Locks shall be installed maximum 48”/ 1220mm from the floor surface
Keyless360_ADA-diagram

Highest touch point


 Front Edge of block


 Top of finished floor

LOCK ROUTING

Keyless360 routing

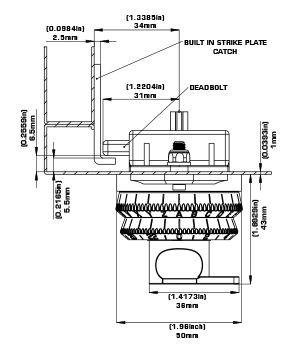

TOP VIEW 1-6mm thick door

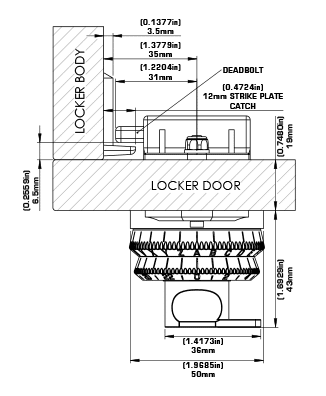

TOP VIEW 6-21mm thick door
